Hoof anatomy, terminology & visit records

Scope & intent

Use these four views to connect anatomical names with visible landmarks, then carry the same vocabulary into visit notes and conversations. The original Blender artwork represents an illustrative equine forehoof, not a scanned specimen. Proportions and surface details vary in real horses; these images cannot determine a diagnosis or trimming plan.

01 / Exterior

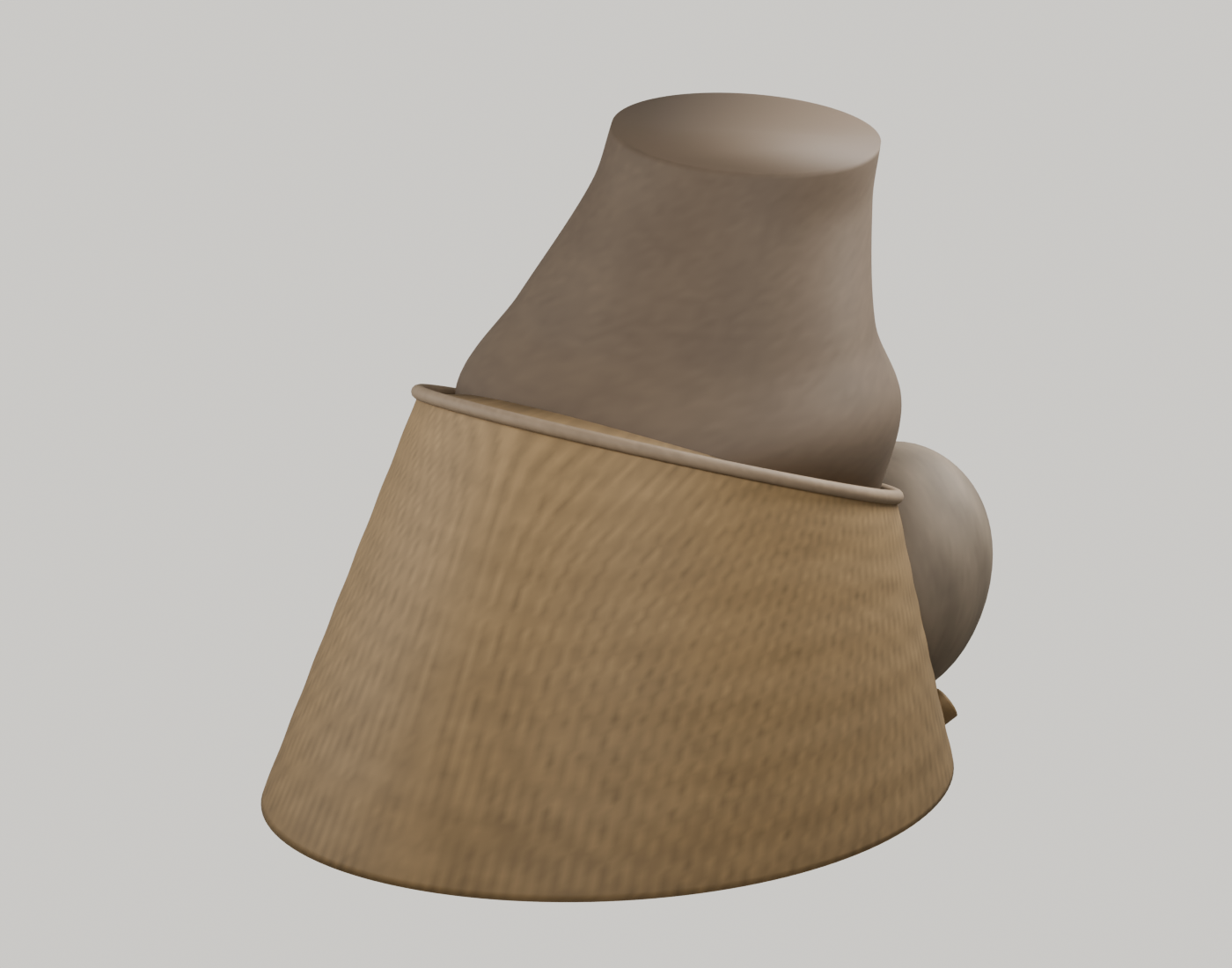

Meet the hoof capsule

The hoof wall wraps around the toe and quarters to the heels. The coronary band follows its upper border, while the paired heel bulbs form the softer contours at the back of the foot. These landmarks give you a shared vocabulary for describing what you see.

1 2 3 4

Look closer

Explore the same hoof in 3D

Turn the model, look underneath, or open the illustrative cutaway. The labeled stills remain available below.

Four labeled reference views are available on this page.

Illustrative anatomy only. The cutaway omits structures for visibility; colors distinguish tissues. This model cannot establish an ideal hoof angle, sole depth, or trimming plan.

02 / Inside the capsule

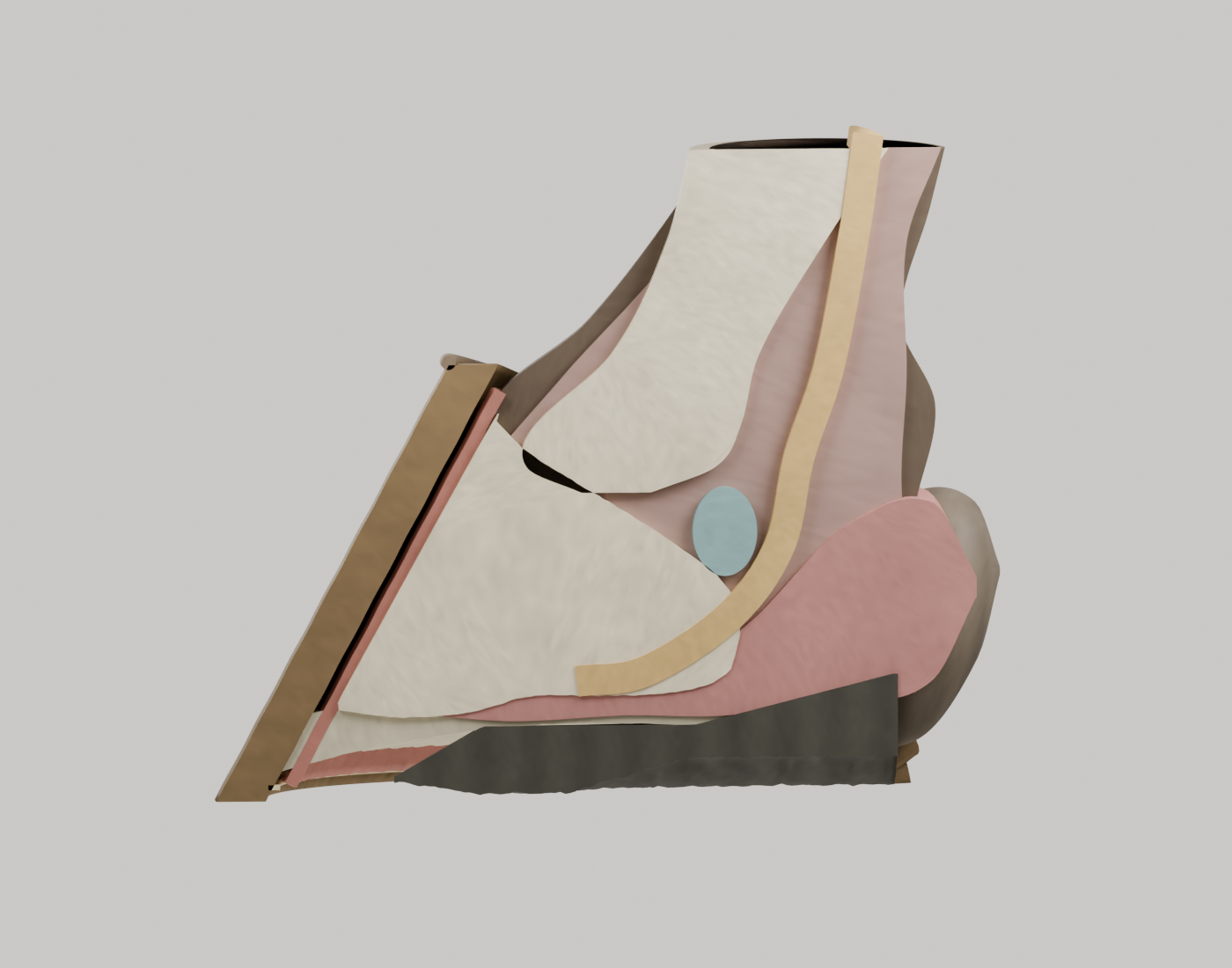

A view beneath the wall

This illustrative sagittal cutaway opens one side of the foot to reveal selected internal structures. The distal phalanx (P3, or coffin bone) sits inside the capsule, below the middle phalanx (P2). The navicular bone lies behind the coffin joint. The deep digital flexor tendon passes behind it toward its attachment on P3.

1 2 3 4 5 6

03 / Solar surface

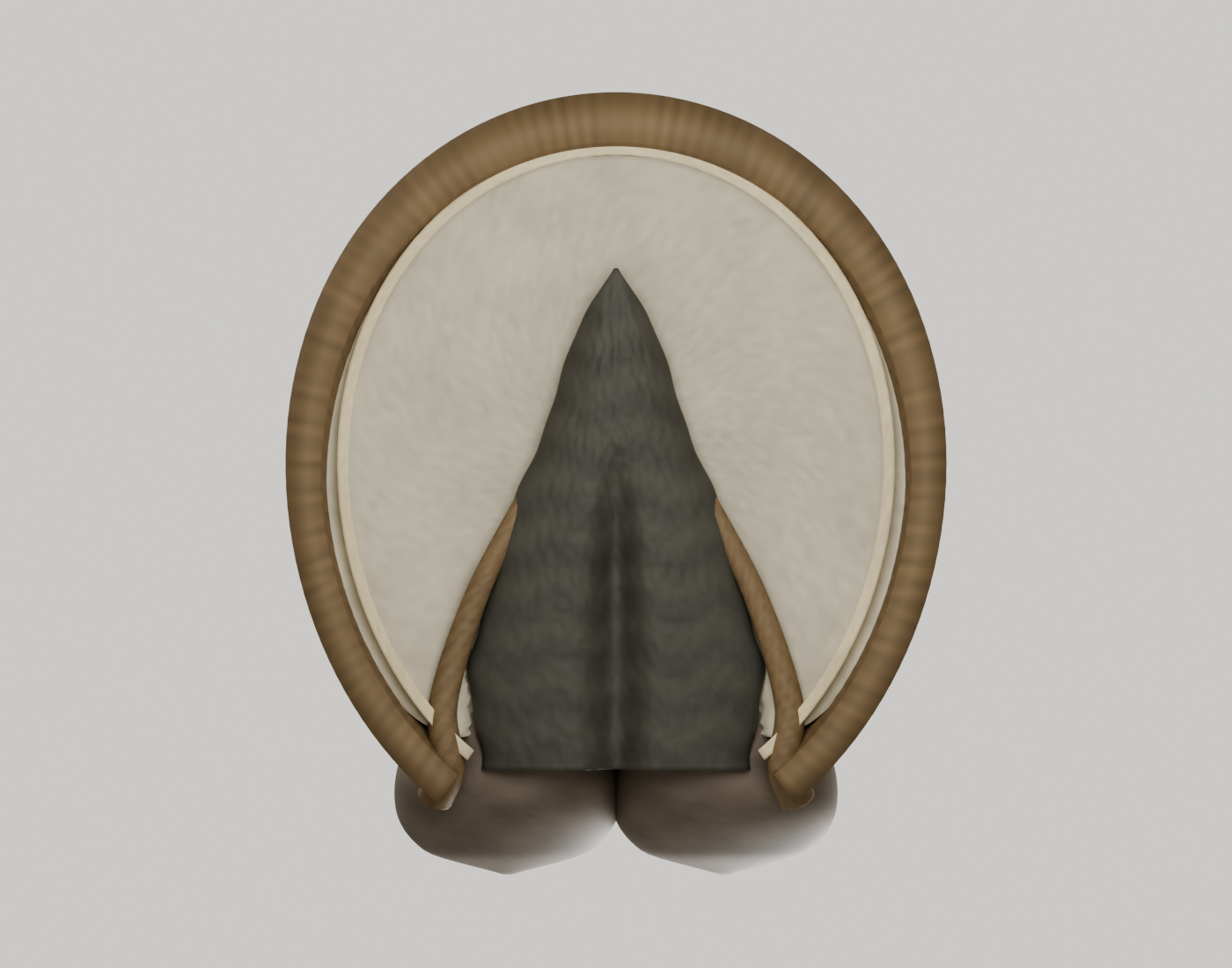

Read the underside

The solar view shows the underside of the foot. The sole lies inside the bearing border of the wall, with the white line at their junction. The frog points toward the toe and broadens toward the heels. At the heels, the wall turns inward to form the bars alongside the frog.

1 2 3 4 5

04 / Dorsal surface

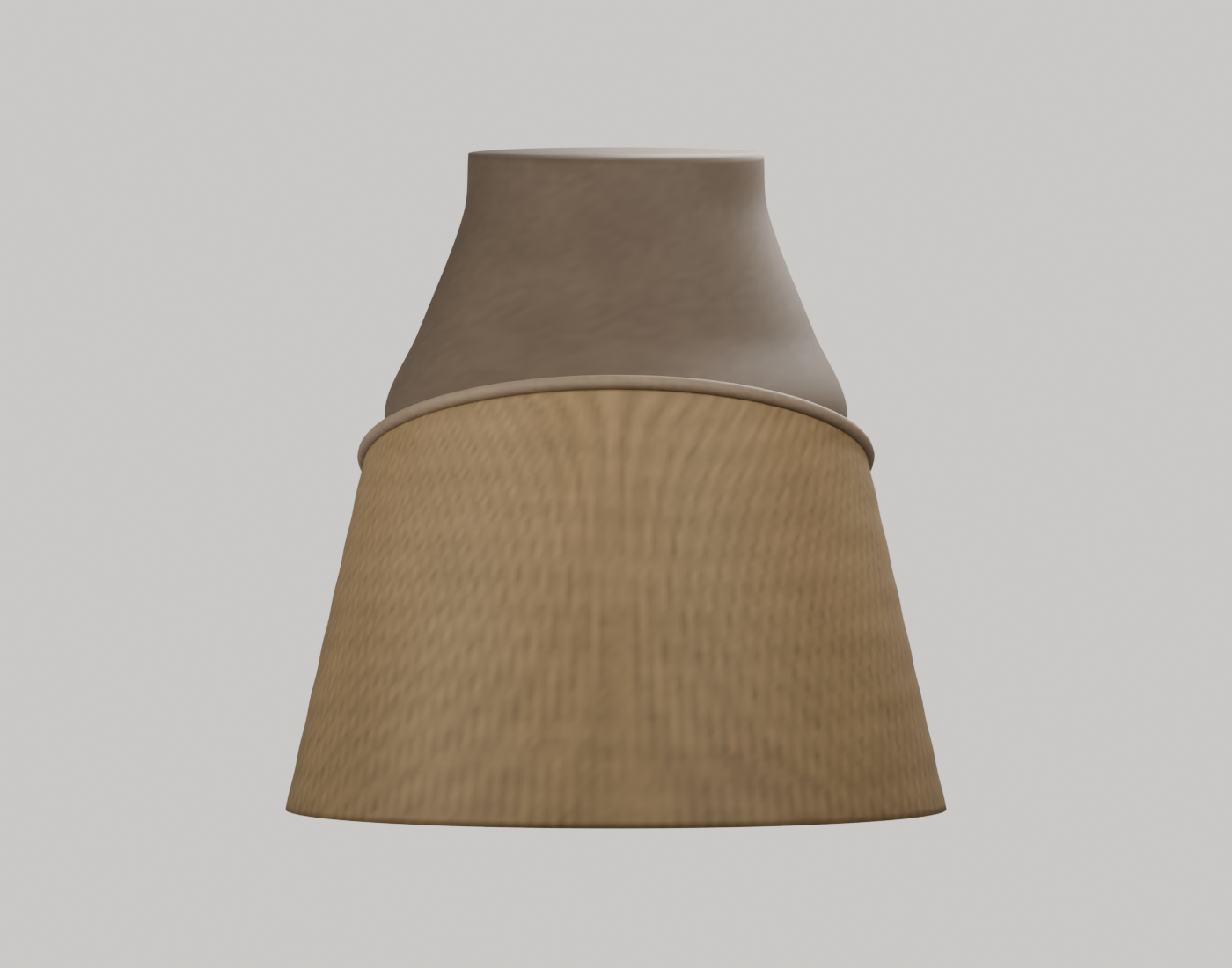

The hoof from the front

A dorsal view looks toward the front of the toe. It shows the coronary border and how the wall curves around the capsule toward each quarter. “Medial” means toward the horse’s midline; “lateral” means away from it. Those terms depend on which limb you are observing.

1 2 3

Distortion & failure patterns (overview)

These terms may appear in a horse’s history or veterinary instructions. A photograph or a short description cannot establish a diagnosis. Record what was observed and distinguish it from a diagnosis supplied by the veterinarian.

• Laminitis: a serious disorder involving the tissues that attach the hoof wall to the underlying structures. Suspected laminitis requires urgent veterinary assessment.
• White line disease or separation: terms used for problems involving separation within the hoof wall. Location, extent, and the veterinarian’s findings matter; this page does not prescribe resection or treatment.
• Underrun or sheared heels: descriptions of heel conformation or distortion. Note the foot, date, and observations instead of assigning a cause from appearance alone.
• Sole depth and palmar angle: measurements or assessments discussed during hoof-care planning. Record the source of a measurement and the date of relevant imaging.

For clinical explanations, see the MSD Veterinary Manual’s guide to foot disorders and AAEP’s laminitis guidance. These organizations have not endorsed or reviewed Hoofy.

Intervention cadence & documentation

Interval is a clinical variable: high-mileage sport horses, metabolic cases, rehab after laminitis, and neglected feet do not share one clock. What separates good outcomes from drift is documented history — what you removed, what you left, shoe type, owner-reported soundness, and photos when useful. That record protects the horse, clarifies owner expectations, and supports insurance or legal documentation if things go sideways. Consistency in your schedule is a business discipline as much as a welfare one.

• Shorten cycles when growth rings or wear suggest instability before the next visit.
• Align trim/shoeing dates with vet rechecks in active laminitis or post-surgical cases.
• Use the same vocabulary on paper that you use with the vet (this page can help).

Veterinary collaboration & imaging

Request lateral radiographs when palmar angle, sole depth, or rotation is uncertain — especially before aggressive sole removal or major shoeing changes in laminitic horses. In joint cases, clarify who owns analgesia, metabolic monitoring, and return-to-work decisions. Farriers are not diagnosticians; you are essential partners in mechanical execution. Clear handoffs reduce rework and protect the horse from mixed messages.

Red-flag situations (non-exhaustive)

Acute severe lameness, unilateral heat with digital pulse, open solar prolapse, suspected fracture or septic joint, or rapid bilateral sinking — veterinary emergency, not a shoeing reschedule.

Reference terms

HPA (hoof–pastern axis)

Alignment relationship between dorsal hoof wall and pastern; informs breakover and palmar support decisions.

Palmar angle

Angular relationship of the solar margin / P3 relative to the ground; often discussed with radiographs.

Lamellar interface

Attachment zone between dermal and epidermal lamellae — central in laminitis and many wall separations.

Distal phalanx migration

Sinking or rotation relative to the hoof capsule; severity guides vet–farrier planning.

Sole depth / solar margin

Protective sole thickness and bone-to-ground distance — balance protection with adequate stimulation.

Mediolateral balance

Even loading across medial and lateral structures for that limb’s conformation — not cosmetic symmetry.

Growth rings / event lines

Changes in horn deposition that may reflect systemic or load events — read as history, not decoration.

Breakover

Where and how the toe leaves the ground — manipulated via trim, shoe shape, and rocker mechanics.

Publisher, illustrations & further reading

Published by Hoofy. The four renderings and interactive model are original artwork created in Blender, not a scan, dissection or measured specimen. Their proportions, surface texture and tissue colors are illustrative. They have not been veterinary-reviewed. Hoofy is scheduling and business software; keeping a record does not validate a diagnosis or guarantee a clinical outcome.

Anatomical references: the University of Minnesota College of Veterinary Medicine’s distal-limb anatomy and University of Missouri’s Functional Anatomy of the Horse Foot (PDF). These references informed the terminology and relationships shown; their authors have not reviewed or endorsed this model.

For professional references, start with the MSD Veterinary Manual’s foot-care overview and the American Association of Equine Practitioners’ laminitis guidance. External sources are further reading, not an endorsement of this page. Send a correction if you spot a problem.
